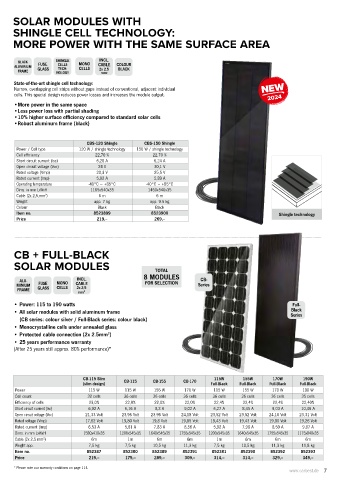

Page 7 - CARBEST 2024 EN

SOLAR MODULES WITH
SHINGLE CELL TECHNOLOGY:

MORE POWER WITH THE SAME SURFACE AREA

BLACK SHINGLE MONO INCL.
FUSE
ALUMINIUM GLASS CELLS CELLS CABLE COLOUR
TECH-
BLACK
2x 2,5
FRAME NOLOGY mm 2
State-of-the-art shingle cell technology:
Narrow, overlapping cell strips without gaps instead of conventional, adjacent individual
cells. This special design reduces power losses and increases the module output.
• More power in the same space
•Less power loss with partial shading
•10% higher surface efficiency compared to standard solar cells
•Robust aluminum frame (black)

CBS-120 Shingle CBS-150 Shingle
Power / Cell type 120 W / shingle technology 150 W / shingle technology
Cell efficiency 22,70 % 22,70 %
Short circuit current (Isc) 6,28 A 6,24 A
Open circuit voltage (Voc) 24 V 30,1 V
Rated voltage (Vmp) 20,3 V 25,5 V
Rated current (Imp) 5,92 A 5,89 A
Operating temperature -40°C +85°C -40°C +85°C
~
~
Dims. in mm LxWxH 1165x540x35 1450x540x35
Cable (2x 2,5,mm ) 2 6 m 6 m
Weight app. 7 kg app. 9.5 kg
Colour Black Black
Item no. 8523899 8523900 Shingle technology
Price 219,-- 269,--

CB + FULL-BLACK
SOLAR MODULES TOTAL

8 MODULES
ALU- INCL. CB-
MINIUM FUSE MONO CABLE FOR SELECTION Series
CELLS
FRAME GLASS 2x 2,5
mm 2
• Power: 115 to 190 watts Full-
• All solar modules with solid aluminum frame Black
Series
(CB series: colour silver / Full-Black series: colour black)
• Monocrystalline cells under annealed glass
2
• Protected cable connection (2x 2.5mm )
• 25 years performance warranty
(After 25 years still approx. 80% performance)*

CB-115 Slim 115W 155W 170W 190W
(slim design) CB-115 CB-155 CB-170 Full-Black Full-Black Full-Black Full-Black
Power 115 W 115 W 155 W 170 W 115 W 155 W 170 W 190 W
Cell count 32 cells 36 cells 36 cells 36 cells 36 cells 36 cells 36 cells 35 cells
Efficiency of cells 23,0% 22,0% 22,0% 22,0% 22,4% 22,4% 22,4% 22,40%
Short circuit current (Isc) 6,92 A 6,16 A 8,3 A 9,02 A 6,27 A 8,45 A 9,03 A 10,46 A
Open circuit voltage (Voc) 21,33 Volt 23.96 Volt 23.96 Volt 24,18 Volt 23,52 Volt 23,52 Volt 24,16 Volt 23,31 Volt
Rated voltage (Vmp) 17,62 Volt 19,80 Volt 19,8 Volt 19,85 Volt 19,43 Volt 19,43 Volt 19,80 Volt 19,26 Volt
Rated current (Imp) 6,53 A 5,81 A 7,83 A 8,56 A 5,92 A 7,98 A 8,59 A 9,87 A
Dims. in mm LxWxH 1580x410x35 1200x545x35 1640x545x35 1755x545x35 1200x545x35 1640x545x35 1755x545x35 1175x840x35
Cable (2x 2.5 mm ) 6m 1m 6m 6m 1m 6m 6m 6m
2
Weight app. 7,5 kg 7,5 kg 10,5 kg 11,3 kg 7,5 kg 10,5 kg 11,3 kg 11,8 kg
Item no. 852387 852380 852389 852391 852381 852390 852392 852393
Price 219,-- 175,-- 289,-- 309,-- 314,-- 314,-- 329,-- 349,--
* Please note our warranty conditions on page 114.
www.carbest.de 7
