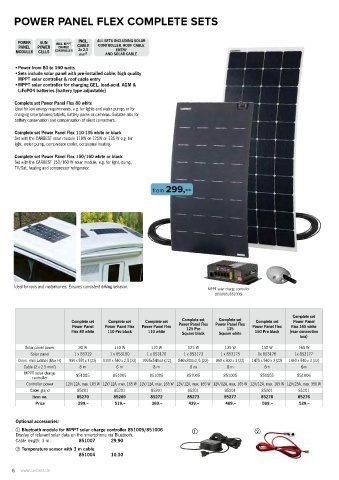

Page 6 - CARBEST 2024 EN

POWER PANEL FLEX COMPLETE SETS

POWER SUN INCL. MPPT INCL. ALL SETS INCLUDING SOLAR
PANEL POWER CHARGE CABLE CONTROLLER, ROOF CABLE
ENTRY
MODULES CELLS CONTROLLER 2x 2,5 AND SOLAR CABLE
mm²
•Power from 80 to 160 watts
• Sets include solar panel with pre-installed cable, high quality
MPPT solar controller & roof cable entry
• MPPT solar controller for charging GEL, lead-acid, AGM &
LiFePO4 batteries (battery type adjustable)

Complete set Power Panel Flex 80 white
Ideal for low energy requirements, e.g. for lights and water pumps or for
charging smartphones/tablets, battery packs or cameras. Suitable also for
battery conservation and compensation of silent consumers.
Complete set Power Panel Flex 110-135 white or black
Set with the CARBEST solar module 110W or 125W or 135 W e.g. for
light, water pump, compressor cooler, occasional heating.

Complete set Power Panel Flex 150/160 white or black
Set with the CARBEST 150/160 W solar module, e.g. for light, pump,
TV/Sat, heating and compressor refrigerator.

from 299,--

Ideal for vans and motorhomes. Ensures consistent driving behavior.
MPPT solar charge controller
(851005/851006)

Complete set
Complete set Complete set Complete set Complete set Complete set Complete set Power Panel
Power Panel Power Panel Flex Power Panel Flex Power Panel Flex Power Panel Flex Power Panel Flex Flex 165 white
125 Pro
135
Flex 80 white 110 Pro black 110 white Square black Square white 150 Pro black (rear connection
box)
Solar panel power 80 W 110 W 110 W 125 W 135 W 150 W 165 W
Solar panel 1 x 85319 1 x 853180 1 x 853170 1 x 853173 1 x 853175 1x 853176 1x 853177
Dims. mm LxWxH (Box H) 980 x 550 x 3 (22) 1100 x 540 x 2,5 (22) 1095x540x3 (22) 840x800x2,5 (22) 860 x 800 x 3 (22) 1475 x 540 x 3 (22) 1460 x 540 x 3 (22)
Cable (2 x 2.5 mm ) 2 8 m 6 m 8 m 8 m 8 m 6m 6m
MPPT solar charge 851005 851005 851005 851005 851005 851005 851006
controller
Controller power 12V/12A, max. 165 W 12V/12A, max. 165 W 12V/12A, max. 165 W 12V/12A, max. 165 W 12V/12A, max. 165 W 12V/12A, max. 165 W 12V/25A, max. 350 W
Cable gland 85201 85201 85201 85201 85201 85201 85201
Item no. 85270 85269 85272 85273 85277 85278 85276
Price 299,-- 519,-- 369,-- 439,-- 469,-- 599,-- 529,--

Optional accessories:
a Bluetooth module for MPPT solar charge controller 851005/851006 a b
Display of relevant solar data on the smartphone via Bluetooth.
Cable length: 3 m. 851007 29,90
b Temperature sensor with 3 m cable
851004 10,30

6 www.carbest.de
