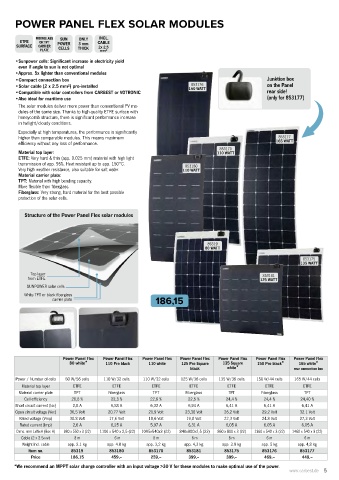

Page 5 - CARBEST 2024 EN

POWER PANEL FLEX SOLAR MODULES

FIBERGLASS SUN ONLY INCL.
ETFE OR TPT CABLE
3 mm
SURFACE CARRIER POWER THICK 2x 2,5
CELLS
PLATE mm²
• Sunpower cells: Significant increase in electricity yield
even if angle to sun is not optimal
• Approx. 5x lighter than conventional modules
•Compact connection box Junktion box
853176
•Solar cable (2 x 2.5 mm²) pre-installed 150 WATT on the Panel
•Compatible with solar controllers from CARBEST or VOTRONIC rear side!
• Also ideal for maritime use (only for 853177)
The solar modules deliver more power than conventional PV mo-
dules of the same size. Thanks to high-quality ETFE surface with
honeycomb structure, there is significant performance increase
in twilight/cloudy conditions.
Especially at high temperatures, the performance is significantly
higher than comparable modules. This means maximum 853177
efficiency without any loss of performance. 165 WATT
853170
Material top layer: 110 WATT
ETFE: Very hard & thin (app. 0.025 mm) material with high light
transmission of app. 95%. Heat resistant up to app. 150°C. 853180
Very high weather resistance, also suitable for salt water. 110 WATT
Material carrier plate:
TPT: Material with high bending capacity.
More flexible than fiberglass.
Fiberglass: Very strong, hard material for the best possible
protection of the solar cells.

Structure of the Power Panel Flex solar modules

85319
80 WATT
853175
135 WATT

Top layer 853181
from ETFE 125 WATT
SUNPOWER solar cells
White TPT or black fiberglass
carrier plate 186,15

Power Panel Flex Power Panel Flex Power Panel Flex Power Panel Flex Power Panel Flex Power Panel Flex Power Panel Flex
80 white* 110 Pro black 110 white 125 Pro Square 135 Square 150 Pro black* 165 white*
black white* rear connection box
Power / Number of cells 80 W/56 cells 110 W/32 cells 110 W/32 cells 125 W/36 cells 135 W/36 cells 150 W/44 cells 165 W/44 cells
Material top layer ETFE ETFE ETFE ETFE ETFE ETFE ETFE
Material carrier plate TPT Fiberglass TPT Fiberglass TPT Fiberglass TPT
Cell efficiency 20,8 % 22,5 % 22,6 % 22,5 % 24,4 % 24,4 % 24,40 %
Short circuit current (Isc) 2,8 A 6,88 A 6,32 A 6,94 A 6,41 A 6,41 A 6,41 A
Open circuit voltage (Voc) 36,5 Volt 20.77 Volt 21,9 Volt 23,36 Volt 26.2 Volt 29.2 Volt 32.1 Volt
Rated voltage (Vmp) 30.8 Volt 17,6 Volt 18,6 Volt 19,8 Volt 22,3 Volt 24.8 Volt 27,3 Volt
Rated current (Imp) 2,6 A 6,25 A 5,97 A 6,31 A 6,05 A 6,05 A 6,05 A
Dims. mm LxWxH (Box H) 980 x 550 x 3 (22) 1100 x 540 x 2,5 (22) 1095x540x3 (22) 840x800x2,5 (22) 860 x 800 x 3 (22) 1360 x 540 x 3 (22) 1460 x 540 x 3 (22)
Cable (2 x 2.5mm 2 ) 8 m 6 m 8 m 6 m 8 m 6 m 6 m
Weight incl. cable app. 2.1 kg app. 4.0 kg app. 3,2 kg app. 4,3 kg app. 3.9 kg app. 5 kg app. 4,8 kg
Item no. 85319 853180 853170 853181 853175 853176 853177
Price 186,15 459,-- 259,-- 399,-- 399,-- 469,-- 449,--
*We recommend an MPPT solar charge controller with an input voltage >30 V for these modules to make optimal use of the power.
