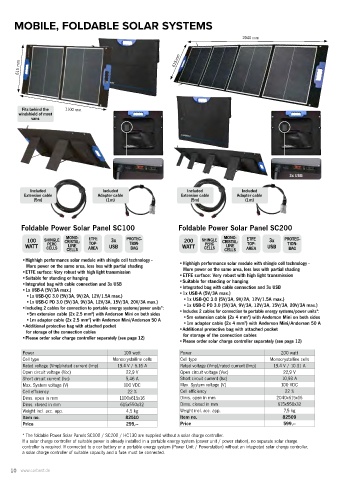

Page 10 - CARBEST 2024 EN

MOBILE, FOLDABLE SOLAR SYSTEMS

2040 mm

615 mm 615 mm

Fits behind the 1100 mm
windshield of most
vans

3x USB 3x USB

Included Included Included Included
Extension cable Adapter cable Extension cable Adapter cable
(5m) (1m) (5m) (1m)

Foldable Power Solar Panel SC100 Foldable Power Solar Panel SC200

MONO- MONO-
100 SHINGLE CRISTAL- ETFE 3x PROTEC- 200 SHINGLE CRISTAL- ETFE 3x PROTEC-
TOP-
TOP-
PERC
PERC
LINE
WATT CELLS CELLS AREA USB TION- WATT CELLS CELLS AREA USB TION-
LINE
BAG
BAG
• Highhigh performance solar module with shingle cell technology - • Highhigh performance solar module with shingle cell technology -
More power on the same area, less loss with partial shading
• ETFE surface: Very robust with high light transmission More power on the same area, less loss with partial shading
• ETFE surface: Very robust with high light transmission
• Suitable for standing or hanging
• Integrated bag with cable connection and 3x USB • Suitable for standing or hanging
• Integrated bag with cable connection and 3x USB
• 1x USB-A (5V/3A max.)
• 1x USB-QC 3.0 (5V/3A, 9V/2A, 12V/1.5A max.) • 1x USB-A (5V/3A max.)
• 1x USB-QC 3.0 (5V/3A, 9V/2A, 12V/1.5A max.)
• 1x USB-C PD 3.0 (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A max.)
• Including 2 cables for connection to portable energy systems/power units*: • 1x USB-C PD 3.0 (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A max.)
• Includes 2 cables for connection to portable energy systems/power units*:
• 5m extension cable (2x 2.5 mm ) with Anderson Mini on both sides 2
2
• 1m adapter cable (2x 2.5 mm ) with Anderson Mini/Anderson 50 A • 5m extension cable (2x 4 mm ) with Anderson Mini on both sides
2
• 1m adapter cable (2x 4 mm ) with Anderson Mini/Anderson 50 A
2
• Additional protective bag with attached pocket
for storage of the connection cables • Additional protective bag with attached pocket
for storage of the connection cables
• Please order solar charge controller separately (see page 12)
• Please order solar charge controller separately (see page 12)
Power 100 watt Power 200 watt
Cell type Monocrystalline cells Cell type Monocrystalline cells
Rated voltage (Vmp)/rated current (Imp) 19.4 V / 5.16 A Rated voltage (Vmp)/rated current (Imp) 19.4 V / 10.31 A
Open circuit voltage (Voc) 22,9 V Open circuit voltage (Voc) 22,9 V
Short circuit current (Isc) 5,46 A Short circuit current (Isc) 10,93 A
Max. System voltage (V) 100 VDC Max. System voltage (V) 100 VDC
Cell efficiency 22 % Cell efficiency 22 %
Dims. open in mm 1100x615x16 Dims. open in mm 2040x615x16
Dims. closed in mm 615x550x32 Dims. closed in mm 615x550x32
Weight incl. acc. app. 4,5 kg Weight incl. acc. app. 7,5 kg
Item no. 82510 Item no. 82509
Price 299,-- Price 599,--
* The foldable Power Solar Panels SC100 / SC200 / HC130 are supplied without a solar charge controller.
If a solar charge controller of suitable power is already installed in a portable energy system (power unit / power station), no separate solar charge
controller is required. If connected to a car battery or a portable energy system (Power Unit / Powerstation) without an integrated solar charge controller,
a solar charge controller of suitable capacity and a fuse must be connected.
