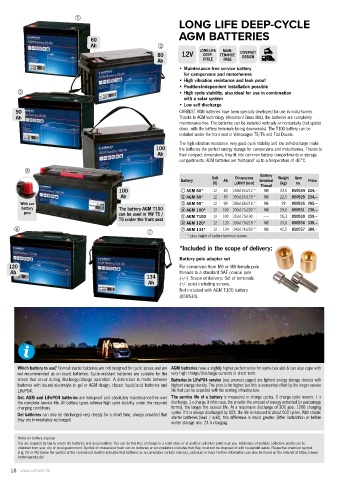

Page 18 - CARBEST 2024 EN

a
LONG LIFE DEEP-CYCLE
AGM BATTERIES
60
Ah b
MAIN-
80 12V LONG LIFE TENANCE COMPACT
DEEP-
DESIGN
Ah CYCLE FREE
• Maintenance-free service battery
for campervans and motorhomes
• High vibration resistance and leak proof
• Position-independent installation possible
c • High cycle stability, also ideal for use in combination
with a solar system
• Low self discharge
90 CARBEST AGM batteries have been specially developed for use in motorhomes.
Ah Thanks to AGM technology (Absorbent Glass Mat), the batteries are completely
maintenance-free. The batteries can be installed vertically or horizontally (not upside
down, with the battery terminals facing downwards). The T100 battery can be
installed under the front seat in Volkswagen T5/T6 and Fiat Ducato.
The high vibration resistance, very good cycle stability and low self-discharge make
100 the batteries the perfect energy storage for campervans and motorhomes. Thanks to
d
Ah their compact dimensions, they fit into common battery compartments or storage
compartments. AGM batteries are frost-proof up to a temperature of -40°C.
e
Battery
Volt Dimensions Weight Item
Battery Ah terminal Price
(V) LxWxH (mm) Thread (kg) no.
100 a AGM 60* 12 60 258x167x213 ° M6 23,5 850534 224,--
Ah b AGM 80* 12 80 350x167x179 ° M6 22,5 850529 234,--
With car c AGM 90* 12 90 306x168x216 ° M6 29 850535 295,--
battery The battery AGM T100 d AGM 100* 12 100 330x171x220 ° M8 29,0 850531 239,--
pole can be used in VW T5 /
T6 under the front seat e AGM T100 12 100 353x175x190 ––– 26,3 850530 259,--
f AGM 120* 12 120 330x173x218 ° M8 33,5 850536 339,--
f g AGM 134* 12 134 340x174x285 ° M8 42,5 850537 389,--
g
° plus height of battery terminal screws
*Included in the scope of delivery:
Battery pole adapter set
120 For conversion from M6 or M8 female pole
Ah threads to a standard SAE conical pole
134 (+/-). Scope of delivery: Set of terminals
Ah (+/- pole) including screws.
Not included with AGM T100 battery
(850530).

Which battery to use? Normal starter batteries are not designed for cyclic stress and are AGM batteries have a slightly higher performance for same box size & can also cope with
not recommended as on-board batteries. Cycle-resistant batteries are suitable for the very high charge/discharge currents in short term.
stress that occur during discharge/charge operation. A distinction is made between Batteries in LiFePO4 version (see previous pages) are lightest energy storage devices with
batteries with bound electrolyte in gel or AGM design, classic liquid/acid batteries and highest energy density. The price is far higher, but this is somewhat offset by the longer service
LiFePO4. life that can be expected with the existing infrastructure.
Gel, AGM and LiFePO4 batteries are leak-proof and absolutely maintenance-free over The service life of a battery is measured in charge cycles. 1 charge cycle means: 1 x
the complete service life. All battery types achieve high cycle stability under the required discharge, 1 x charge. In this case, the smaller the amount of energy extracted (in percentage
charging conditions. terms), the longer the service life. At a maximum discharge of 30% app. 1200 charging
Gel batteries can also be discharged very deeply for a short time, always provided that cycles. If it is always discharged by 50%, the life is reduced to about 500 cycles. With classic
they are immediately recharged. starter batteries (lead / acid), this difference is much greater. (After installation or before
winter storage min. 24 h charging.

Notes on battery disposal:
You are required by law to return old batteries and accumulators. You can do this free of charge in a retail store or at another collection point near you. Addresses of suitable collection points can be
obtained from your city or local government. Symbol of crossed-out trash can on batteries or accumulators indicates that they must not be disposed of with household waste. Respective chemical symbol
(Hg, Cd or Pb) below the symbol of the crossed-out dustbin indicates that batteries or accumulators contain mercury, cadmium or lead. Further information can also be found on the Internet at https://www.
batteriegesetz.de/
18 www.carbest.de
