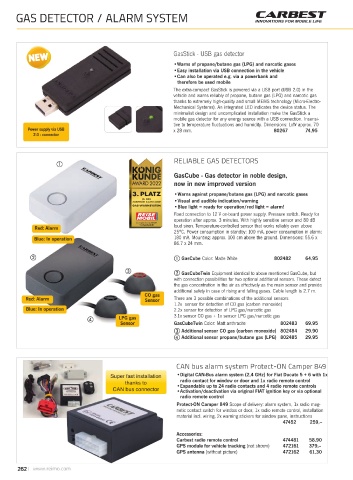

Page 262 - REIMO - VAN CONVERSION catalogue

GAS DETECTOR / ALARM SYSTEM

GasStick - USB gas detector

•Warns of propane/butane gas (LPG) and narcotic gases
•Easy installation via USB connection in the vehicle
•Can also be operated e.g. via a powerbank and
therefore be used mobile
The extra-compact GasStick is powered via a USB port (USB 2.0) in the
vehicle and warns reliably of propane, butane gas (LPG) and narcotic gas
thanks to extremely high-quality and small MEMS technology (Micro-Electro-
Mechanical Systems). An integrated LED indicates the device status. The
minimalist design and uncomplicated installation make the GasStick a
mobile gas detector for any energy source with a USB connection. Insensi-
tive to temperature fluctuations and humidity. Dimensions: LxW approx. 70
Power supply via USB x 28 mm. 80267 74,95
2.0 - connector

RELIABLE GAS DETECTORS

GasCube - Gas detector in noble design,
now in new improved version
•Warns against propane/butane gas (LPG) and narcotic gases
•Visual and audible indication/warning
•Blue light = ready for operation/red light = alarm!
GAS-WARNSYSTEM
Fixed connection to 12 V on-board power supply. Pressure switch. Ready for
operation after approx. 3 minutes. With highly sensitive sensor and 80 dB
Red: Alarm loud siren. Temperature-controlled sensor that works reliably even above
25°C. Power consumption in standby: 100 mA, power consumption in alarm:
Blue: In operation 180 mA. Mounting: approx. 100 cm above the ground. Dimensions: 55.6 x
86.7 x 24 mm.

GasCube Color: Matte White 802482 64,95

GasCubeTwin Equipment identical to above mentioned GasCube, but
with connection possibilities for two optional additional sensors. These detect
the gas concentration in the air as effectively as the main sensor and provide
additional safety in case of rising and falling gases. Cable length is 2.7 m.
CO gas
Red: Alarm Sensor There are 3 possible combinations of the additional sensors
1.2x sensor for detection of CO gas (carbon monoxide)
Blue: In operation 2.2x sensor for detection of LPG gas/narcotic gas
LPG gas 3.1x sensor CO gas + 1x sensor LPG gas/narcotic gas
Sensor GasCubeTwin Color: Matt anthracite 802483 69,95
Additional sensor CO gas (carbon monoxide) 802484 29,90
Additional sensor propane/butane gas (LPG) 802485 29,95

CAN bus alarm system Protect-ON Camper 849

Super fast installation •Digital CAN-Bus alarm system (2,4 GHz) for Fiat Ducato 5 + 6 with 1x
radio contact for window or door and 1x radio remote control
thanks to •Expandable up to 24 radio contacts and 4 radio remote controls
CAN bus connector •Activation/deactivation via original FIAT ignition key or via optional
radio remote control
Protect-ON Camper 849 Scope of delivery: alarm system, 1x radio mag-
netic contact switch for window or door, 1x radio remote control, installation
material incl. wiring, 2x warning stickers for window pane, instructions
47452 259,--

Accessories:
Carbest radio remote control 474481 58,90
GPS module for vehicle tracking (not shown) 472161 379,--
GPS antenna (without picture) 472162 61,30

262 www.reimo.com
